Precise material preparation is the basis for the precise manufacture of our products. Our 15 kW fiber laser cuts steel sheets with a thickness of up to 30 mm and sheets with a maximum size of 2 x 4 m. We use BySoft software for programming.

On the CNC-controlled bending press bending lengths of up to 4300 mm and bending strengths of up to 320 tonnes can be realised. We use BySoft software for programming.

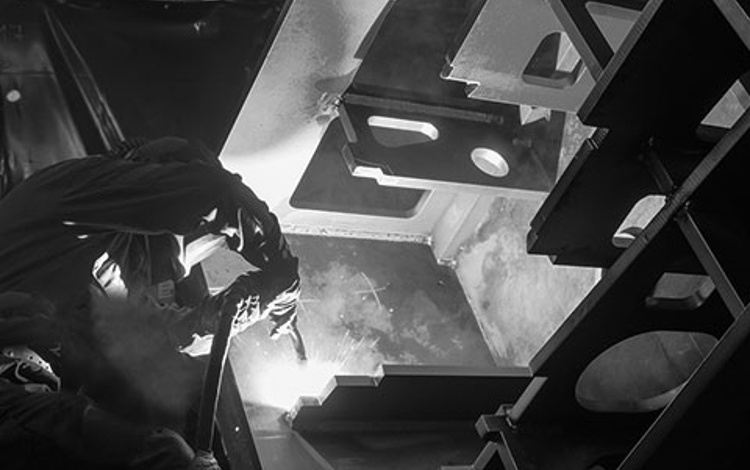

Weight up to 12 tons Welding machine beds and welded constructions weighing up to 12 tons is part of our core business. We manufacture prototypes, individual pieces or series. Our welding process also includes TIG welding and a fully automatic orbital welding machine. The machine is capable of welding tubes with a thickness of up to 2 mm and a diameter of up to 114 mm. Our team consists of certified specialists.

We have an electronically controlled annealing furnace for workpieces up to 10 meters long, 2.65 meters wide and 2.8 meters high with a loading capacity of up to 25 tons. The standard temperature is 620° Celsius. The annealing process or the annealing curve can be individually designed according to customer requirements, annealing protocols are supplied. Size 2.6 x 2.8 x 10 m Capacity up to 25 tons Standard temperature 620°C

In the composite constructions with excellent damping properties, elements (threads, cable routing, bushings) are placed and cast in advance. The high level of functional integration in combination with functional filling materials opens up new, innovative design possibilities. We use Daetwynol - a specially developed cement-bonded mineral mixture - for filling.

On our CNC milling machines for large cubic machine components, we process workpieces up to a length of 8 meters and a total weight of up to 20 tons. total weight of up to 20 tons highest precision and quality. Our strengths lie in the machining of complex welded welded constructions as well as castings. Accuracy 0.03 mm Length up to 8 m Capacity up to 20 tons

Careful pre-treatment is the most important the most important basis for a high-quality high-quality coating. Parts are pretreated based on the material, requirements and size. Priming and painting is carried out using a wet process with one or two components and in all available colours. available colours. We carry out both high and low pressure spraying processes, with or without structure. The customer can choose the colour supplier or brand.

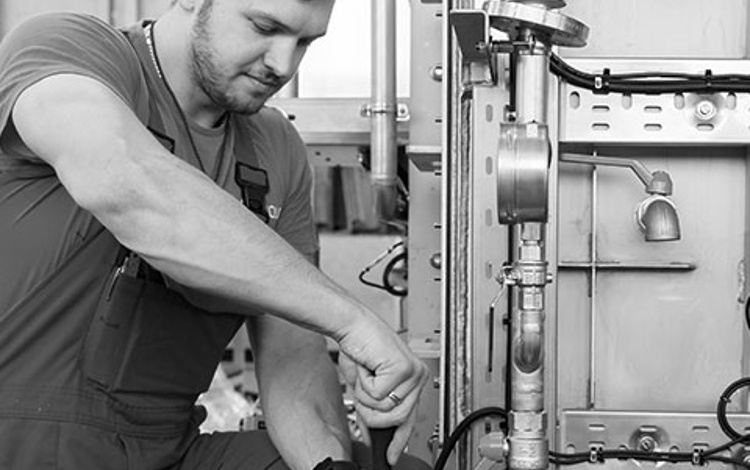

We offer assembly services tailored to customer requirements: from mechanical or electrical assemblies to the complete assembly of complex systems. Motivated specialists and many years of experience enable efficient, high-quality and high-quality and cost-effective assembly work.
